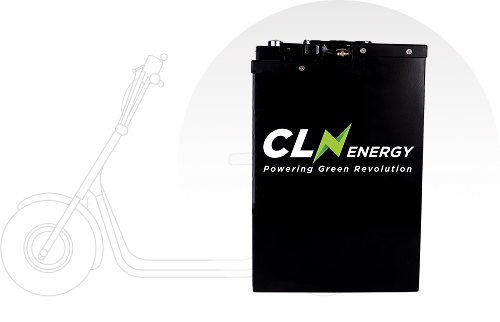

Power-packed L2 battery built for speed, range, and reliability.
As the demand for sustainable urban mobility continues to rise, CLN-Energy is at the forefront with its advanced two-wheeler battery solutions. Designed as the core of electric scooters and motorcycles, the CLN-Energy battery pack delivers reliable power and energy for efficient, eco-friendly transportation. Built using high-performance lithium-ion cells, these battery packs are configured to meet specific voltage and capacity requirements while maintaining optimal weight and compactness. Key features of CLN-Energy’s two-wheeler batteries include high energy density, fast charging capability, long lifecycle, and robust performance.
Cycle life of +2,000 cycles under nominal operating conditions
Safety first with multi – level protection features
High voltage (18S) architecture enables better acceleration & increased mileage per cycle
Compatible with most existing 2-Wheeler electric vehicle
Minimal self – discharge at 3% /month
ICAT certified
Category | Parameter | Value |
---|---|---|
General | Battery Pack | 48Ah, LiFePO4 Battery |
Rated Energy | 2.76 kWh @ (0.2C, 100% DOD at 25°C) | |
Estimated Life (at 80% DOD & 25°C) | 2000 cycles | |
Electrical Characteristics | Nominal Voltage | 57.6Vdc (Nominal) |
Charging Current | 20A (Nominal) | |
Discharging Current | 40A (Nominal) | |
Peak Discharge Current | 50A for 30 sec | |
Efficiency | > 97% | |
Connector Type | Chogori (2+1+5) | |
Environmental & Mechanical | Operating Temperature | -10°C to 50°C (charging) & -20°C to 60°C (discharging) |
IP Class | IP67 | |
Humidity | < 90% (Non-condensing) | |
Dimensions (L x W x H) | 300 x 181 x 304 mm | |
Weight | 28 Kg | |
Protections | Over/under-temperature, over/under-voltage, over current, short circuit | |
Communication Interface | Optional (As per requirement) | |
Applicable Standards | ***ICAT |
